AUTOMATIC VERTICAL PACKAGING MACHINE HLNV-520VW WITH 16-HEAD COMBINATION WEIGHER – COMPLETE LINE FOR WEIGHING, FORMING, FILLING AND SEALING PACKAGES

Product description

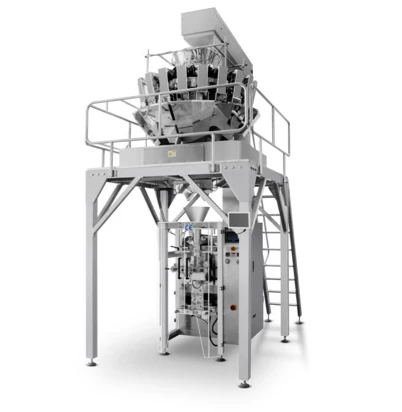

The HLNV-520VW automatic vertical packaging machine is a complete professional packaging line designed for automatic weighing, bag forming, filling, sealing, coding and cutting of packages. The machine is intended for continuous operation in production plants, food companies, packaging facilities and factories packing loose, granular, piece-type and irregular products.

The HLNV-520VW packaging machine forms the package from film, doses the required product portion, fills the bag, seals it, cuts the finished package and counts production cycles. The entire process is automatic, which helps increase production efficiency, reduce manual work and achieve repeatable, aesthetic packages.

The line is equipped with a 16-head HL-16 combination weigher, designed for fast and accurate product weighing. The combination weigher selects the correct combination of portions from the weighing buckets, allowing precise dosing into each package.

The set also includes a platform for the combination weigher, a Z-type bucket elevator with vibrating hopper and a finished product conveyor. This makes the machine a complete packaging line ready for integration into the production process.

Application

The machine is suitable for packing products such as panko, breadcrumbs, expanded snacks, chips, nuts, pistachios, almonds, raisins, candies, cookies, pasta, rice balls, dumplings, frozen meatballs, pet food, granular products, piece-type products, irregular products, loose products, small technical parts, herbs and similar products.

The machine can be used in the food industry, packaging industry, industrial production and plants dealing with automatic packing of products into film packages.

Main advantages of the machine

Automatic product weighing, automatic bag forming, automatic filling, automatic sealing and cutting, finished package counting system, possibility of package coding, high working efficiency, stable stainless steel construction, electrical components from well-known brands, intuitive operation from the control panel, possibility of integration into a production line, suitable for continuous operation, high process repeatability, aesthetic and repeatable packages.

Operation description

The product is fed to the combination weigher using a Z-type bucket elevator. The HL-16 weigher measures the required product portion and transfers it to the packaging machine. The machine forms the bag from film using a forming tube, fills it with the weighed product portion, performs vertical and horizontal sealing, cuts off the finished package and transfers it to the finished product conveyor.

The finished product conveyor receives the packed packages and moves them to the next stage of the process, such as collection, inspection, labeling, cartoning or further packaging.

Set components

HLNV-520V packaging machine for forming, filling, sealing and cutting packages, HL-16 combination weigher for precise product weighing, HL2-2 platform for positioning the weigher above the packaging machine, HL-350 bucket elevator for transporting the product to the weigher, HL-130-2 finished product conveyor for receiving finished packages, date coder for printing markings on packages.

Technical data of the HLNV-520V packaging machine

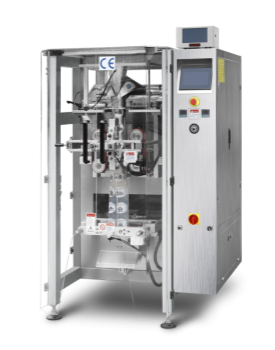

Model: HLNV-520V

Machine type: automatic vertical packaging machine

Bag length: 50–370 mm

Bag width: 80–250 mm

Maximum film width: 520 mm

Packing speed: 80–120 pcs/min

Air consumption: 0.3 m³/min, 0.7 MPa

Power supply: 220 V / 50/60 Hz

Power: 4.8 kW

Machine dimensions: 1650 × 1170 × 1700 mm

Machine weight: 800 kg

Technical data of the HL-A16 combination weigher

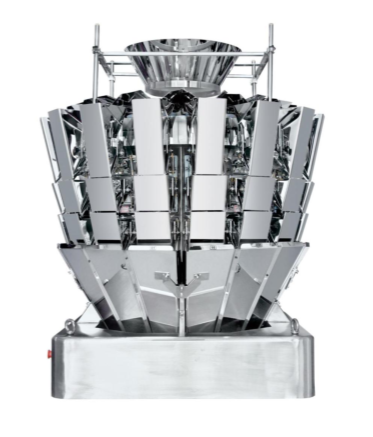

Model: HL-A16

Machine type: 16-head combination weigher

Weighing range: 10–1000 g

Weighing accuracy range: X(0.5)

Maximum weighing speed: 100 × 2 P/M

Bucket capacity: 1.6 l / 2.5 l

Operating interface: 10.1-inch touch screen

Drive system: stepper motor

Power supply: 220 V / 2300 W / 50/60 Hz / 11 A

Transport dimensions: 1860 × 1200 × 1540 mm

Transport weight: 650 kg

Technical data of the HL2-2 platform

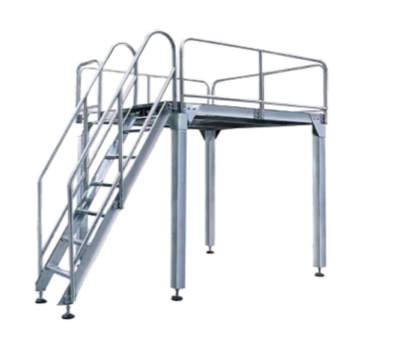

Model: HL2-2

Product dimensions: 2000 × 2000 × 2000 mm

Net weight: 700 kg

Technical data of the HL-350 bucket elevator

Model: HL-350

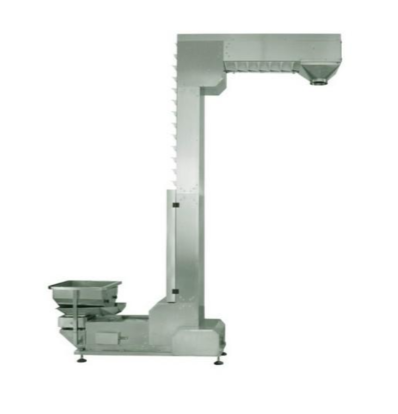

Machine type: Z-type bucket elevator with vibrating hopper

Power: 750 W

Machine dimensions: 3000 × 650 × 3750 mm

Design: adapted to the line configuration

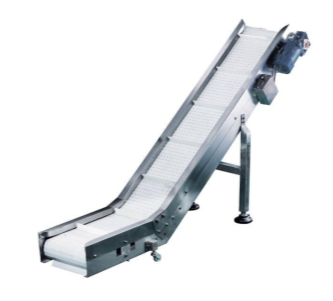

HL-130-2 Finished Product Conveyor

Package information

The machine is designed to work with packages formed from film. The bag length can be adjusted from the machine settings.

The bag width depends on the forming tube used. Each machine is supplied with one forming tube for the agreed package width.

If the package width changes, an additional forming tube is required. If only the package length changes, the adjustment can be made in the machine settings.

Final confirmation of capacity, weighing range and package dimensions should be carried out based on a test with the customer’s actual product, target film and final package size.

Additional information

The machine is supplied with CE.

Instruction manual in Polish.

Control panel in Polish.

Warranty.

We provide service and access to spare parts.

Paid additionally

Forming tube for a different sachet width.
