COMPLETE WOOD PELLET PRODUCTION LINE 15 T/H – LINE FOR DRYING, CRUSHING, GRANULATION, COOLING AND PACKING OF PELLETS

Product description

The complete wood pellet production line is a professional industrial set of machines designed for the production of pellets from sawdust, wood chips, wood biomass and shredded wood waste. The line covers the entire technological process: initial wood crushing, metal separation, material conveying, buffer storage, milling, drying, feeding to pellet machines, pelletizing, pellet cooling and preparation of the finished product for packing.

The line is designed for continuous operation in plants producing heating pellets, industrial pellets and biomass pellets. Thanks to the use of multiple technological sections, the system allows the processing of raw material with increased moisture content, crushing it to the required fraction, drying it to the moisture level required for pelletizing and pressing the material into cylindrical pellets.

The system includes industrial wood pellet machines, belt conveyors, screw conveyors, bucket elevators, buffer silos, rotary dryers, cyclones, fans, air locks, dust collectors, pellet mills, a pellet cooling bin and equipment for conveying and packing the finished product.

This is a complete solution for companies looking for an efficient wood pellet production line, sawdust pellet production line, biomass pelletizing line, automatic pellet production line, industrial wood drying and pelletizing line and complete technology for the production of heating pellets.

Application

Wood pellet production, sawdust pellet production, wood chip pellet production, wood biomass pellet production, pellet production from sawmill waste, heating pellet production, industrial pellet production, wood raw material processing, biomass processing, pellet production plants, sawmills, biomass processing plants, energy plants, companies processing wood waste, companies producing ecological fuels.

Technological process

The raw material first enters the crushing section, where wood or larger wooden elements are crushed into smaller fractions. The material is then transported to the milling section, where hammer mills prepare the proper material structure for the pelletizing process.

The next stage is drying. The line uses rotary dryers designed to reduce the moisture content of the material. The drying section allows the material to be dried from approximately 40–45% moisture content to approximately 15%, so that it meets the requirements of the pelletizing process.

After drying, the material is transferred to the pelletizing section. The line includes five vertical ring die wood pellet machines, model LKJ850. Each machine is designed to press dried material into pellets. The pelletizing section is designed for efficient pellet production, and the machines require the appropriate moisture content of sawdust, approximately 15–18%.

The finished pellets are then transferred to the cooling section and further conveying system, and can then be directed to packing or loading.

Main advantages of the line

Complete wood pellet production line

Industrial technology for pellet production from sawdust and biomass

Process from raw material crushing to finished pellets

Wood crushing section

Metal separation section

Milling and fraction preparation section

Material drying section

Pelletizing section

Finished pellet cooling section

Conveying and packing section

5 wood pellet machines

2 rotary dryers

2 hammer mills

Cyclone and dust collection system

Buffer silos for raw material storage

Belt conveyors, screw conveyors and bucket elevators

Continuous operation capability

Stable material transport between sections

Advanced control automation

Control panel in Polish or another required language

Instruction manual in Polish or another required language

The machine is supplied with CE

Possibility to adjust safety markings and information stickers to customer requirements

We provide service and access to spare parts

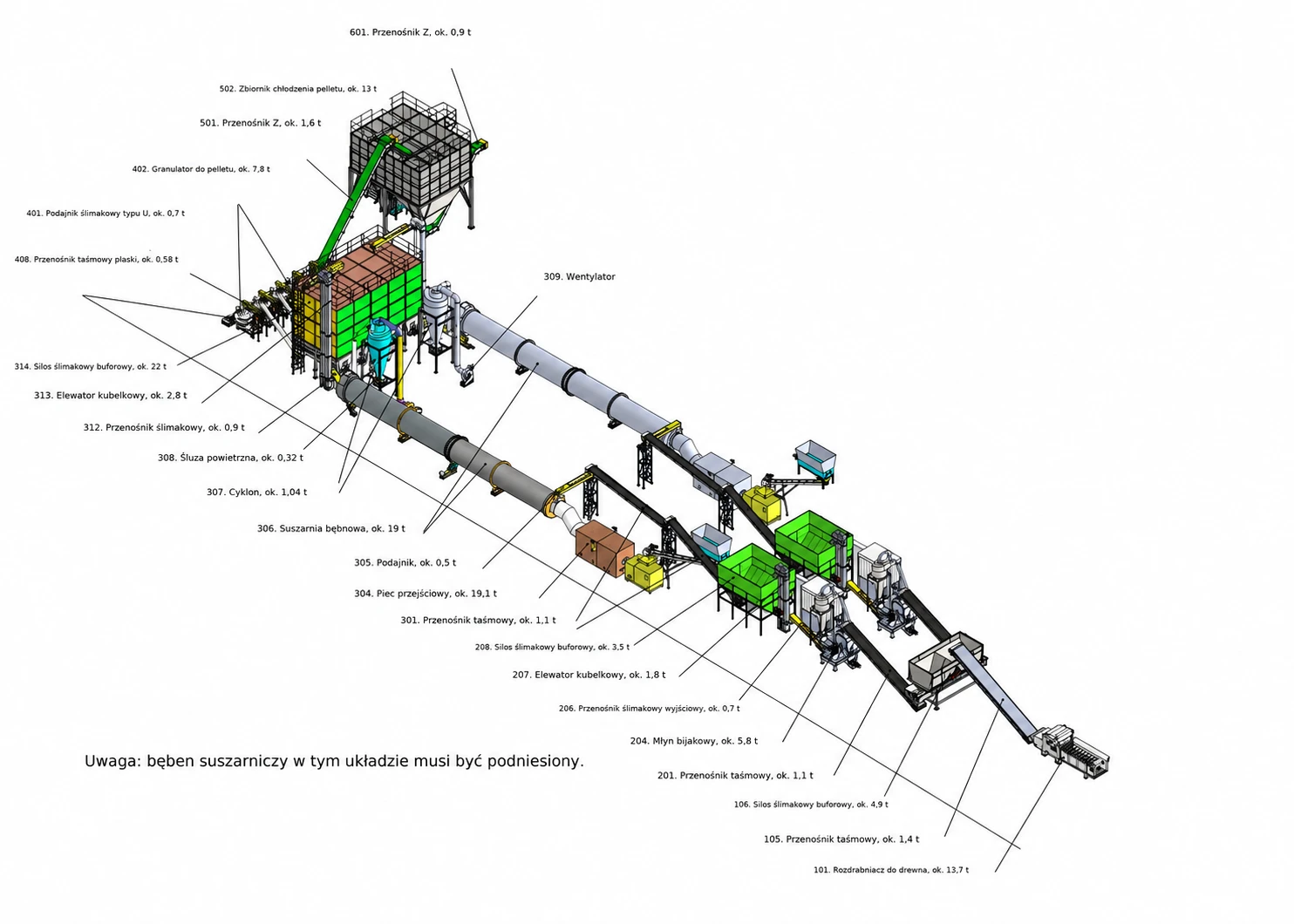

Line composition – elements and quantities

Initial wood crushing section

101. Wood crusher TCZP1400 — 1 set
     Machine designed for crushing wood raw material into smaller pieces and preparing the material for further processing.
102. Dust collector system — 1 set
     System designed for collecting dust generated during crushing.
103. Electrical cabinet — 1 set
     Control cabinet for operating and controlling the section.
104. Iron remover / metal separator — 1 set
     Device designed to remove metal elements from the material.
105. Belt conveyor PSJ120 × 10 — 1 set
     Conveyor for collecting the crushed material.
106. Screw silo 60 m³ — 1 set
     Silo for storing wood chips / crushed material.

Milling and fraction preparation section

201. Belt conveyor PSJ100 × 10 m — 2 sets
     Conveyors transporting crushed material to the hammer mills.
202. Inverter — 2 sets
     Regulation of material feeding speed.
203. Strong magnetic block — 20 sets
     Elements for removing metals from wood pieces.
204. Hammer mill GXPS1600 — 2 sets
     Machines for fine crushing of the material and obtaining the fraction required for pelletizing. The section includes a fan, cyclone, air lock and pulse dust collector.
205. Electrical cabinet — 2 sets
     Control cabinets for controlling the operation of the hammer mills.
206. Screw conveyor PSJ425 × 6 m — 2 sets
     Conveyors collecting pulverized material from the bottom of the hammer mills.
207. Bucket elevator DTJ80 — 2 sets
     Machines for transporting sawdust / milled material to the silo.
208. Screw silo 30 m³ — 2 sets
     Silos for storing milled material.

Material drying section

301. Belt conveyor PSJ100 × 12 — 2 sets
     Conveyors feeding material to the drying section.
302. Inverter — 2 sets
     Regulation of material feeding speed.
303. Burner — 2 sets
     Source of hot air for the dryers.
304. Transition furnace / transition chamber — 2 sets
     Element preventing open flames from entering the dryer.
305. Feeder — 2 sets
     Even feeding of material into the dryer.
306. Rotary dryer GHG2.0 × 23 × 1 — 2 sets
     Dryers designed for drying sawdust / biomass from approximately 40–45% moisture content to approximately 15%.
307. Cyclone Φ2000 — 2 sets
     Devices for collecting dried material.
308. Air lock 700 × 700 — 2 sets
     Air locks ensuring uniform material discharge.
309. Fan — 2 sets
     Fans for pulling hot air through the dryer.
310. Pipes — 2 sets
     Pipe installation for transporting sawdust / material.
311. Electrical cabinet — 2 sets
     Control cabinets for operating the drying section.
312. Screw conveyor 500 × 6 — 2 sets
     Transport of dried material.
313. Bucket elevator DTJ80 — 2 sets
     Transport of dried material to the silo.
314. Screw silo 120 m³ — 1 set
     Silo for storing dried material.

Pelletizing section

401. U-type screw feeder BF425 × 6 — 5 sets
     Feeders transporting material to the pellet machines.
402. Wood pellet machine LKJ850 — 5 sets
     Vertical ring die pellet machines designed for pressing dried material into cylindrical wood pellets.
403. Grease pump HYB-2 — 5 sets
     Lubrication system for the pellet machines.
404. Pulse dust collector — 1 set
     Dust collection system including cyclone and pipes.
405. Electrical cabinet — 5 sets
     Control cabinets for controlling the operation of the pellet machines.
406. Belt conveyor PSJ65 — 1 set
     Conveyor collecting finished pellets.

Pellet cooling section

501. Z-belt conveyor DQJ65 × 12 — 1 set
     Conveyor transporting finished pellets to the pellet bin.
502. Pellet bin 100 m³ — 1 set
     Bin for cooling and storing finished pellets.

Conveying and packing section

601. Z-belt conveyor DQJ50 × 10 — 1 set
     Conveyor for transporting pellets towards loading / further collection.
602. Z-belt conveyor DQJ50 × 7 — 1 set
     Conveyor feeding pellets to the packing machine.
603. Packing machine DBZJ50 — 1 set
     Machine for packing pellets.
604. Air compressor — 2 sets
     Compressed air source for the packing machine.

Spare and consumable parts

Testing / start-up spare parts

Blades for wood crusher 101 — 3 pcs

Hammers for hammer mill 204 — 64 pcs

Screens for hammer mill 204 — 2 pcs

Ring die for pellet machine 402 — 1 pc

Roller skins for pellet machine 402 — 4 pcs

Spare parts for operation

Blades for wood crusher 101 — 24 pcs

Hammers for hammer mill 204 — 1536 pcs

Screens for hammer mill 204 — 48 pcs

Ring dies for pellet machines 402 — 80 pcs

Roller skins for pellet machines 402 — 320 pcs

Process data and parameters

The initial crushing section prepares the raw material for further processing and enables the material to be crushed into wood chips. The section is equipped with a 250 kW motor and reaches a capacity of approximately 25 t/h.

The milling section uses two hammer mills, each equipped with a 250 kW motor. The purpose of this section is to finely crush the material to the fraction required for the pelletizing process. The system works with dust collection to reduce dust in the production plant.

The drying section uses two rotary dryers with a diameter of 2 m and a length of 23 m. The purpose of the dryers is to reduce the moisture content of the raw material from approximately 40–45% to approximately 15%, so that the material meets the requirements of the pelletizing process.

The pelletizing section includes 5 LKJ850 wood pellet machines. Each pellet machine is designed for producing pellets from dried wood material. The pelletizing section is designed to achieve a capacity of approximately 15–20 t/h.

Additional information

The machine is supplied with CE.

Control panel in Polish or another required language.

Instruction manual in Polish or another required language.

Safety markings and information stickers can be prepared in Polish or another required language.

We provide service and access to spare parts.
